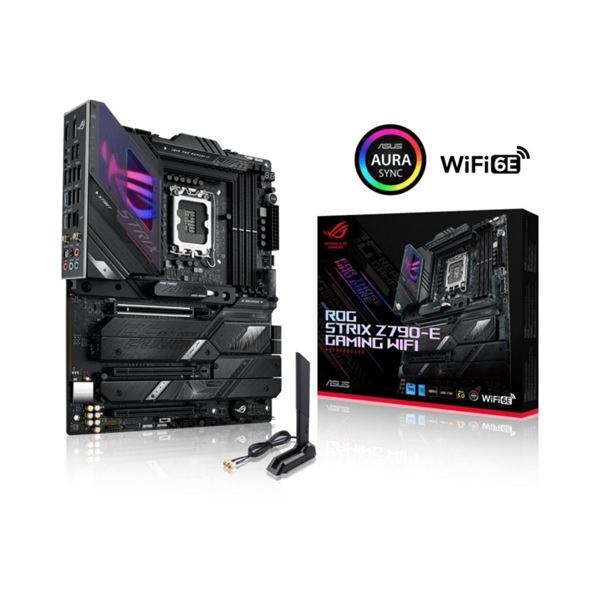

Motherboard Asus Rog Strix Z790-e Gaming Wifi S170

USD 733,00

Categoría:
MarcaAsus
Part Number90MB1CL0-M0EAY0
CPUIntel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

ChipsetIntel® Z790
Memoria4 x DIMM, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Gráficos1 x DisplayPort**

1 x HDMI® port***

* Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates.

** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors’ or graphic cards’ resolution.

AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

– Impedance sense for front and rear headphone outputs

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

– Supports up to 32-Bit/384 kHz playback

Audio Features

– SupremeFX Shielding Technology

– Savitech SV3H712 AMP

– Gold-plated audio jacks

– Rear optical S/PDIF out port

– Premium audio capacitors

– Audio cover

LAN1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Ranuras de ExpansiónIntel® 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot



Intel® Z790 Chipset

2 x PCIe 4.0 x16 slots (support x4 mode)

* Please check the PCIe bifurcation table

on the support site (https://www.asus.com/support/FAQ/1037507/).

** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only.

*** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Panel trasero E/S1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C® )

4 x USB 3.2 Gen 1 ports (4 x Type-A)

1 x HDMI™ port

1 x DisplayPort

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Gold-plated audio jacks*

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

AccesoriosCables

2 x SATA 6Gb/s cables



Additional Cooling Kit

1 x DDR5 Fan holder

1 x VRM Fan holder

1 x Thermal pad for M.2



Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties package

1 x M.2 backplate Q-Latch package

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

2 x M.2 Rubber Packages

1 x M.2 backplate Rubber



PackageDocumentation

1 x User guide

FormatoATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

SocketLGA 1700
AlmacenamientoTotal supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 13th & 12th Gen Processors*

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset**

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

RAIDsupports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10..
